VERTIFLEX UP
Vertiflex Up
Automatic & Stacking on Top Guillotine Glazing System
VertiFlex is a remote-controlled, motorized, chained, movable handrail glazing system. VertiFlex Up is a guillotine glazing system to create free passing under the system. The system can be used as a moving handrail system in HoReCa, stadium, showroom, garage glazing etc.
Why to Choose
- High Quality
- User Friendly
- Safety Tested & Approved
- Smart & Fast Construction
- Available in standard colors
- Various options & accessories
- Incl. 5 years of motor warranty
Remote Control
Vertiflex can be moved with complete remote control by a mobile application.
High Level Isolation
All system profiles are covered by an EPDM gasket and brushes to provide maximum isolation.
Tested & Approved
Vertiflex Up is tested and approved regarding its anti-falling brake mechanism by TÜV SUD Institute.
Aesthetic & Function
Vertiflex Up is the Ultimate Solution!
VertiFlex Up provides you with usage areas that cannot be covered by standard glazing systems but should look aesthetically. This system can be applied to HoReCa and under patios glazing like other guillotine systems.

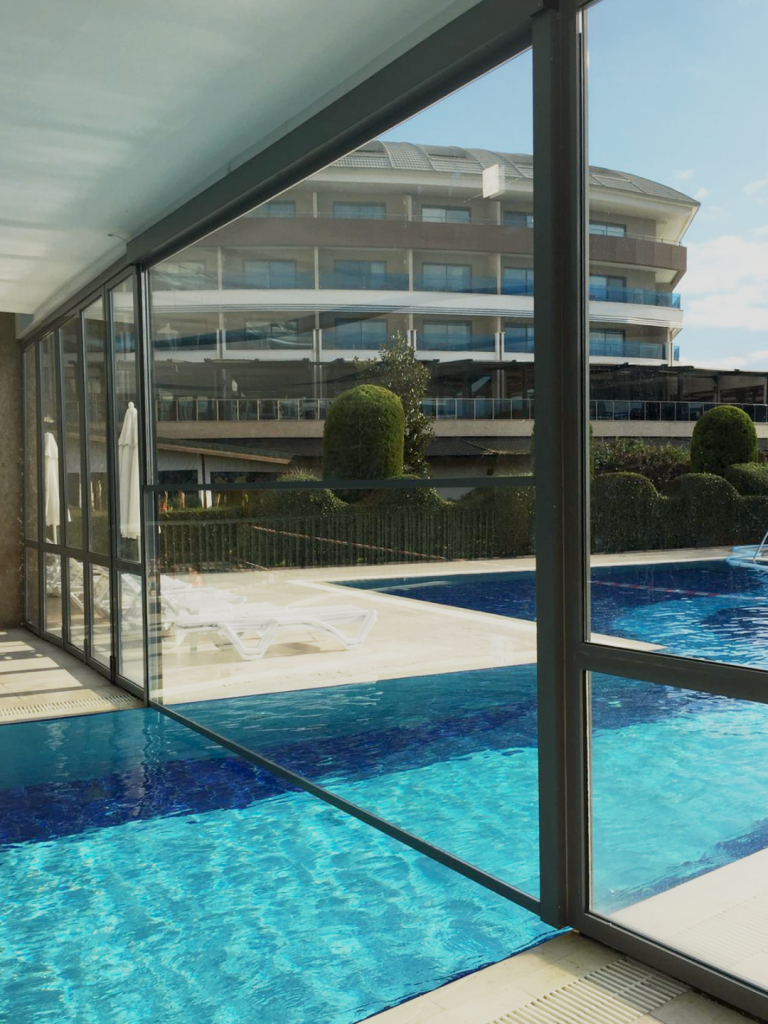

Besides, Vertiflex Up perfectly demonstrates itself as garage doors, industrial walls, loges, office partitions, swimming pool partitions, etc.
CONTACT US NOW!
Stacking at the Top
Free Pass
Whenever the system works, it provides to move under the panels freely! What a separator between two sides!
Anti-Falling
Brake Mechanism
All guillotine systems stacked on the top must be designed with the motor brake mechanism to prevent falling. However, Vertiflex Up has been developed considering an anti-falling brake mechanism, the additional mechanism. There is no doubt that the control mechanism is doubled to prevent the glass panels from falling.
SHOW TECHNICAL INFORMATION
Maximum Panel Sizes
In the system, there are four balancing wheels. A system can be made up of four panels—panel sizes are 4,5 meters in height, 2,5 meters in width or 4 meters in height, 3 meters in width.
Chain Conveyor System Designed for Heavy Lift
Each panel, produced using double steel chains, has a 400 kg lifting capacity and 8.51 mm - 14.75 mm chain lock thickness.
A Sense of
Cascade Manner
All panels have been designed in a sense of cascade manner to prevent rainwater, dust, dirt, etc. which might be entered from the facade.
Silent & Perpetual
Motion
Albert Genau's patented G-Motion system; guarantees a quiet and comfortable movement. The balancing wheels provide smooth movement. In addition, the sealed motor caps have sound insulation.
Hidden Junction
Details
All vertical junctions are hidden. A specially designed cap profile closes the side panel channels aesthetically.
Double Strengthened
Profile Frame
The glass panels are combined with 8 screws, located 2 in each corner of the panel. As a result, the frames of glass panels are strengthened.
Easy Installation
& Fast Service
It's easy to montage and fast service thanks to the combination of partial side profiles, adjustable bottom profile and the freestanding motor mechanism.
Albert Genau Motor
In Vertiflex, Albert Genau branded motor, produced in Italy and has a five-year guarantee, is a standard.
Think Green
This system is environmentally friendly as using minimal profiles lets maximum sunlight in and minimises energy loss.
